Baffle Panels

Baffle Panels

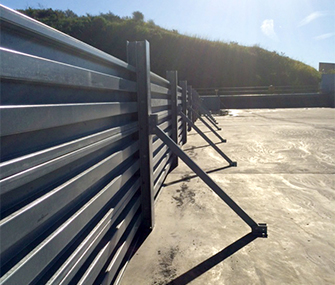

Strongwell's lightweight, high strength fiberglass baffle panels are ideal for underwater flow control applications. These panels have a longer life cycle than wood, concrete, or steel baffle panels which are subject to rot or corrosion, and are, therefore, more cost effective than those alternatives. The lightweight panels are easy to install and can be easily removed for cleaning and access. All panels offer easy fabrication and installation of new systems or the rehabilitation of existing systems. Baffles can be mounted to existing columns, attached to H-beams, or attached to concrete walls with clip angles

Products_Baffle-Panels-installFeatures

  • Corrosion/Rot Resistant
  • Low Conductivity
  • Lightweight
  • High Strength
  • UV Resistance
  • Dimensional Stability

Applications

  • Municipal & Industrial Water and Wastewater Systems
  • Aeration Chambers
  • Contact Chambers
  • Retention Basins

Materials of Construction

Strongwell’s standard (straight-walled) baffle wall panels are available in 12" and 24" nominal widths. A sloped-wall baffle panel is available in a 26.8" nominal width. All panels are manufactured using a polyester resin unless otherwise specified. Optional resin systems offered include a fire retardant polyester resin system, a vinyl ester resin system for enhanced corrosion resistance, or a resin system that meets NSF 61 requirements. Panels include a UV inhibitor and a surfacing veil for additional corrosion resistance and UV protection.
